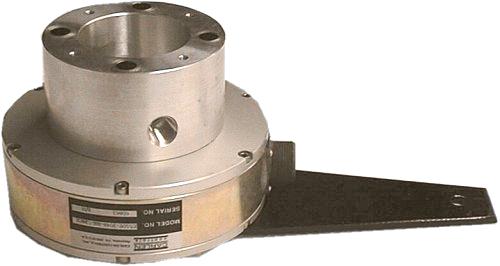

CC550 SHAFT-MOUNTED PULSE TACHOMETER |
 |
GENERAL CC550 is designed for any large system requiring precise speed control without sacrificing rapid response. The 550 Series Shaft-Mounted Pulse Tachometer is easy to install and designed for mill applications requiring a rugged tachometer. The CC550 is capable of operating in hostile environments, and is resistant to vibration, heat and wear.
APPLICATIONS
|
ELECTRICAL SPECIFICATIONS
Code |
- Incremental, Optical |
|
Cycles per Revolution |
- on Code Disc: 60,240,540,600,1000, 1024,1200,1800, 2048,2540,3600 |
|
Supply Voltage |
- 5-15VDC +/-5%, |
|
Current |
- 200 mA Max |
|
Output Vol. (8830) |
- CMOS (HI-12V LO-0.2V) |
|
Output Sig. |
- Square Wave, including: - 2 Channels Phased 90o - Inverted Push-Pull Signal - Differentially Driven - In Quadrature, +/-2o - With Marker Pulse |
|
OA to OB Transition |
- 15% Minimum Separation |
|
Pulse to Pulse Acc. |
- +/-2 Minute of Arc (RMS) |
|
Pulse to Adj. Pulse |
- +/-0.5 Minute of ARC |
|
Temperature |
- Operating, -40oC to 100oC |
|
Frequency Range |
- 0 to 100 KHz |
MECHANICAL SPECIFICATIONS
|
Mounting |
- On 20mm shaft, +/-0.01mm |
|
Housing |
- 6061 Machined Aluminum, Anodized |
|
Shaft |
- 303 Stainless Steel |
|
Shaft Rotation |
- No Backlash - Continuous & Reversible |
|
Slew Speed |
- 5000 RPM |
|
Moment of Inertia |
- 2500 g8cm2 |
|
Bearings |
- Class ABEC7, T188 SS, Sealed with Grease |
|
Bearing Life |
- 2 x 1010 Revs. |
|
Cover |
- 6061 Extruded aluminum |
|
Output Termination |
- MS connector & Mate others available |
|
Shock |
- 50 G's for 11msec Duration |
|
Vibration |
- 5 to 2000 Hz @ 20 G's |
|
Weight |
- 12 lbs Typical |
HOW TO SPECIFY DIGITAL PULSE TACHOMETER Example:
1 = TACHOMETER TYPES ________T = Standard Configuration 2 = CYCLES PER REVOLUTION ________XXXX = Put in actual CPR needed 60, 240, 540, 600, 1000, 1024, 1200,
1800, 2048, 2540, 3600 3 = OUTPUT SIGNAL ________ABZ = See Electrical Specifications 4 = SUPPLY VOLTAGE ________12 = +5 VDC to + 15 VDC ________24 = +5
VDC to +30 VDC 5 = OUTPUT TERMINATION ________MS = MS Connector with mate ________10A = HAN10A Connector with
mate 6 = OPTIONS (Select one or more) ________OS = Hubbell overspeed switch - The 2210 type C overspeed switch is directly coupled to the mandrel drive shaft ________2T = Second digital pulse tachometer - A second independent tachometer is supplied for a backup tach or separate feedback path. ________PR = Pulse rate to analog output (Brushless DC tach) - A DC output derived from the pulse encoder is available with a 0 to 10 V range. Linearity is 0.05%. _______JB =
Junction box with terminal boards, MS mate with 6 feet
of cable MOTOR AND MACHINE ADAPTERS ________CC700/API - Insulated Adapter Plate: Recommended for all main drive motor applications. ________CC700/IP - Interface Adapter Plate: for mounting between motor or machine shaft and CC700/API ________CC550/TSA - Tapered Shaft Adapter: for MD and MC motors. A nut for mounting the TSA to the motor shaft is included. Other mounting options, such as inside of brakes, and special applications are also available. Note: All
mounting hardware for mounting to shaft can be supplied. MOUNTING EQUIPMENT ________CC550/AF - Alignment
and Centering (C & A) Flange: Patent
No. 5,048,384 ________CC700/TA - Torque Arm: provided with all sensors ________CC700/SB - Stabilizer Bar: with ball joint rod ends
|
PRODUCT DIMENSIONS
Dimensions = Inches
(mm)
