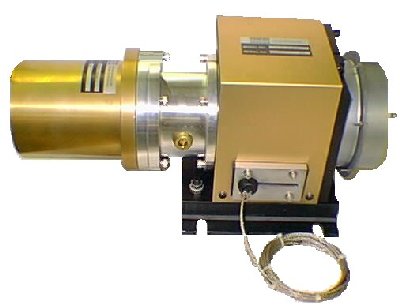

CC520 HEAVY-DUTY REEL SENSOR

GENERAL

Model 520-Heavy Reel Sensor is easy to install and designed for mill applications requiring a rugged sensor. Model 520 is capable of operating in hostile environments and can resist excessive dirt, vibration, heat and water. Readout electronics also available.

APPLICATIONS

• Forging Presses
• Velocity Measurement
• Extrusion Presses
• Manipulators
• Hydraulic Rams
• Mill Machinery
• Rail Mounted Machinery
• Valve Spools
• Roll Diameter Measurement
• Damper Control

TECHNICAL SPECIFICATIONS

The following geared in transducers can be supplied:
1. Synchro/Resolver
2. Absolute Encoder
3. Pulse Encoder
4. Tachometer
5. Potentiometer

Range - Up to 60 feet
Accuracy - 0.01% of full scale
Weight - 15 pounds
Excitation - 5V to 24V +5%
Seal - Splash-proof
Housing - Machined Aluminum
Cable - 0.125 inch stainless steel
Speed Range - 0 to 100 inch/second
Cable Tension - 25 to 50 lb.
Temperature - 0o - 150o F

REEL SENSOR APPLICATION NOTES

The reel sensor is comprised of two basic parts: 1. Linear to rotary unit
2. Transducer or encoder unitOther units are also available such as the film potentiometer unit with 4-20ma output.

Resolver
The resolver transducer unit is used whenever absolute measurement is required. The resolver digital output representing the actual position is retained through power up/down cycles. The resolver must be geared appropriately so that it turns 1 revolution or less over the entire linear range of the cable travel. For example, a linear range of 100 in.:

100in10 in/rev = 10 revolutions

Gear ratio for the resolver package is 10:1
Resolution: single resolver = 4096
                 dual resolver = 262,144

Scale above numbers and read out:
                     100.0 in. or 100.000 in.

Pulse Encoder
The incremental pulse encoder can be used effectively when retained readings are not necessary between power up/down cycles.

For example, linear range of 100 in.:

100in10 in/rev = 10 revolutions

Select encoder with 1000 pulses/rev
Counter output for full range travel:

                    10 rev x 1000 pulses/rev = 10,000 pulses

Scale and read out:
                    100.00 in.

PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • For cable travel up to and including 300(7620)
  • (4)Hole mounting pattern 5.50(140) long x 6.50(165) wide max O.A.L. of reel sensor complete is 25(635)
  • mounting dimensions and O.A.L. are larger for greater cable travel
