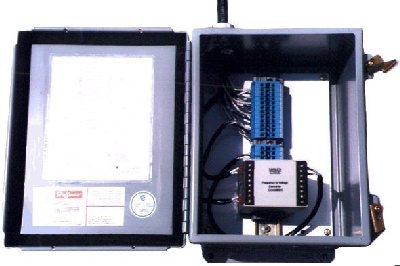

CC450IMDC FREQUENCY TO VOLTAGE CONVERTER


GENERAL

The CC450IMDC converts the quadrature output of a pulse tachometer to an isolated bi-directional  0 -10VDC signal. Applications include interface with older drives requiring a D.C. feedback signal or a D.C. test signal at the drive motor location for drive response analysis.

APPLICATION

A wide frequency range is achieved with jumpers to optimize the operating range. Speed feedback linearity is improved over D.C. tachometer generators along with signal noise which is reduced and of a higher frequency.



SPECIFICATIONS



Specification

- S

- F

Input Power

12 VDC +/-2%



Input Signal

0-20 KHz Quad A-B



Output

+/-10 VDC



Linearity

0.005% F.S.



Stability

0.01% F.S./oC



Response

Bandwidths: rad/sec

74

372

Ripple

% F.S.

0.05%

0.4%

Mechanical

2.17 x 2.95 x 4.33



Environmental

0oC to 70oC





PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • Converter mount onto TS-35 Din Rail

  • 2.95(75) wide x 4.33(110) high x 2.16(55) long
