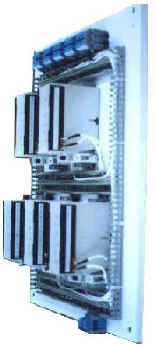

CC450IM REMOTE INTERFACE PANEL


APPLICATION

Distributed I/O for resolver/encoder applications in the steel mill environment. Position feedback is now about as easy as connecting a printer to a computer.





SPECIFICATIONS

Input Power

- 120 VAC 0.5A

Resolution Excitation

- 2.5 KHZ 6VAC RMS

Resolution

- 18 bit 1 part in 262,144
- 21 bit 1 part in 2,097,152

Accuracy

- 18 bit 0.0004%
- 21 bit 0.00005%

Temperature Range

- Operating, 0oC to 70oC

Communication Span

- 7,500 ft.



PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • I/O Module mounts onto TS-35 Din Rail
  • 2.95(75) wide x 4.33(110) high x 5.87(149) long
