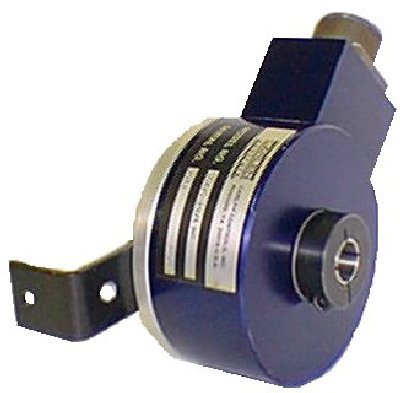

CC425 DIGITAL PULSE TACHOMETER


GENERAL

The CC425 pulse tachometer is a shaft mounted design for mill applications requiring a rugged, low cost and precision design.

APPLICATION

• No shaft coupling required
• Unlimited shaft end-float motion
• No alignment required when installing or replacing
• Higher accuracy feedback signal.
• No error signal introduced from coupling alignment errors





ELECTRICAL SPECIFICATIONS

Code

- Incremental, Optical

Cycles per Revolution

- Code Disc: 240, 540, 600, 1000, 1024, 1200, 2048

Supply Voltage

5 VDC to 30 VDC+/-5%

Supply Current

- CMOS + 150 mA max, 125 mA, typical

Output Signal

- Square wave, with following:
- 2 Channels, phased 90
o Inverted Push-Pull Signal
- Differentially Driven - In Quadrature, +/-2
o - With Marker Pulse

Output Voltage

- 5 VDC to 30 VDC +/-5%

OA to OB Transition

- 15% Minimum Separation

Pulse to Any Pulse Accuracy

- +/-2 Minute of ARC (RMS)

Pulse to Adjacent Pulse

- +/-.5 Minute of ARC

Temperature



Velocity Range

- 0 to 30,000 RPM

Speed Response

- Down to 0 RPM

Output Protection

- Short Circuit
 - Power Supply Reversal

PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • 4.25(108) O.D. x 2.5(64) long
  • direct shaft mount to various shaft diameters
